EzApp - Basic Routing

Overview

ez-app

The EzApp is the building block of an EzBackend, and you can create routes on them as you wish.

EzApps can have children which inherit options from the parent

If a parent has a route-prefix 'user'
All child app routes with have route prefix 'user'

Everything in EzBackend is derived from EzApp

All Plugins are EzApps
EzBackend is an EzApp
EzModel is an EzApp
EzRepo is an EzApp

info

If all you need are Create, Read, Update, Delete (CRUD) endpoints for your database, refer to the EzModel docs instead

Sample structure

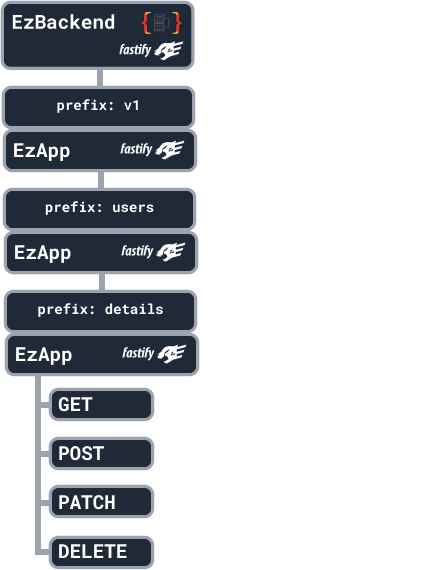

The sample below creates a get, post, patch and delete request at the url /v1/users/details

ez-app-prefixing

Sample
Full Sample

const app = new EzBackend()
const v1 = new EzApp()
const users = new EzApp()
const details = new EzApp()

app.addApp(v1,{prefix:'v1'})
v1.addApp(users,{prefix:'users'})
users.addApp(details,{prefix:'details'})

details.get(...)
details.post(...)
details.patch(...)
details.delete(...)

app.start()

import {EzApp, EzBackend} from "@ezbackend/common"
import { EzOpenAPI } from "@ezbackend/openapi";
import { EzDbUI } from "@ezbackend/db-ui";
import { EzCors } from "@ezbackend/cors";

const app = new EzBackend();

//---Plugins---
app.addApp(new EzOpenAPI());
app.addApp(new EzDbUI());
app.addApp(new EzCors());
//---Plugins---

const v1 = new EzApp()
const users = new EzApp()
const details = new EzApp()

app.addApp(v1,{prefix:'v1'})
v1.addApp(users,{prefix:'users'})
users.addApp(details,{prefix:'details'})

details.get('/',async (req,res) => {
  return {name: "Robert"}
})

details.post('/',async (req,res) => {
  return {created: true}
})

details.patch('/',async (req,res) => {
  return {updated: true}
})

details.delete('/',async (req,res) => {
  return {deleted: true}
})

app.start()

Viewing Available Routes

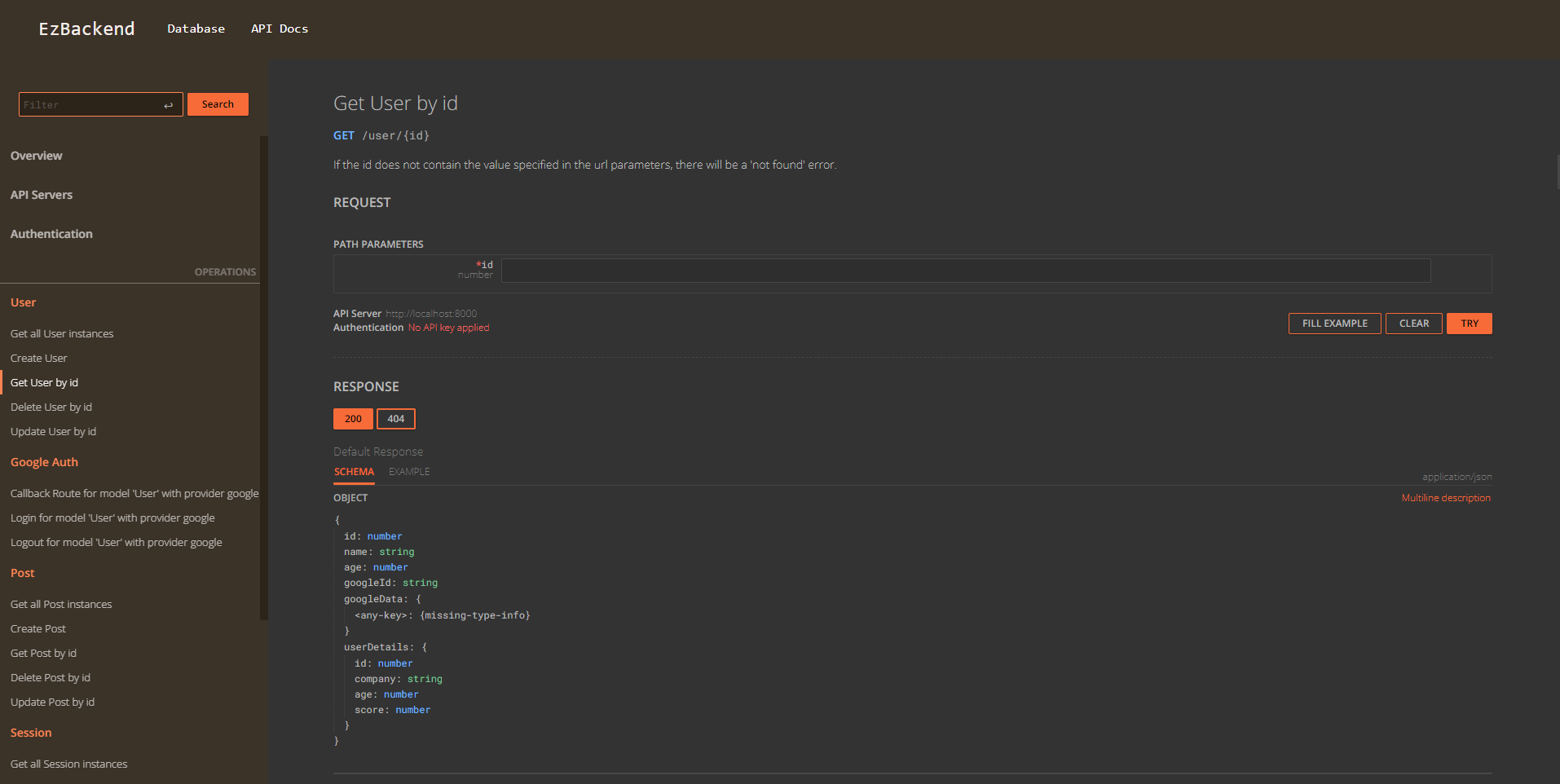

All created routes are automatically documented and displayed in the db-ui

You can access the db-ui at http://localhost:8000/db-ui/ (Assuming port 8000)

db-ui-sample

Creating routes

Creating a route in ezbackend can be done similarly to express or fastify.

There are three ways each route can be created:

Async shorthand
Sync shorthand
Full Declaration

Get

Create an endpoint on the app which returns a json when a GET request is performed

Async
Sync
Full

export class Response {
  data: string
}

app.get("/",{
  reply200: Response
}, async (req,res) => {
  return {data: "data"}
});

export class Response {
  data: string
}

app.get("/",{
  reply200: Response
}, function (req,res) {
  res.send({data: "data"})
});

export class Response {
  data: string
}

app.route({
  method: GET, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    return {data: "data"}
  },
  reply200: Response
})

Post

Create an endpoint on the app which returns a json when a POST request is performed

Async
Sync
Full

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.post("/",{
  body: Person
  reply200: Response
}, async (req,res) => {
  return {data: req.body}
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.post("/",{
  body: Person
  reply200: Response
}, function (req,res) {
  res.send({data: req.body})
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.route({
  method: POST, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    return {data: req.body}
  },
  body: Person
  reply200: Response
})

Put

Create an endpoint on the app which returns a json when a PUT request is performed

Async
Sync
Full

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.put("/",{
  body: Person
  reply200: Response
}, async (req,res) => {
  return {data: req.body}
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.put("/",{
  body: Person
  reply200: Response
}, function (req,res) {
  res.send({data: req.body})
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.route({
  method: PUT, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    return {data: req.body}
  },
  body: Person
  reply200: Response
})

Patch

Create an endpoint on the app which returns a json when a PATCH request is performed

Async
Sync
Full

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.patch("/",{
  body: Person
  reply200: Response
}, async (req,res) => {
  return {data: req.body}
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.patch("/",{
  body: Person
  reply200: Response
}, function (req,res) {
  res.send({data: req.body})
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.route({
  method: PATCH, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    return {data: req.body}
  },
  body: Person
  reply200: Response
})

Delete

Create an endpoint on the app which returns a json when a DELETE request is performed

Async
Sync
Full

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.delete("/",{
  body: Person
  reply200: Response
}, async (req,res) => {
  return {data: req.body}
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.delete("/",{
  body: Person
  reply200: Response
}, function (req,res) {
  res.send({data: req.body})
});

export class Person {
  name: string
}

export class Response {
  data: Person
}

app.route({
  method: DELETE, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    return {data: req.body}
  },
  body: Person
  reply200: Response
})

Route Validation / Documenting Routes

EzBackend allows you to use TypeScript classes for route validation.

Sample
Full Sample

export class Body {
  var1: string,
  var2?: number,
  var3: boolean,
  var4: 'enum1' | 'enum2'
}

app.post('/', {
  querystring: QueryString,
  headers: Headers,
  body: Body,
  reply200: Reply,
  summary: "A summary of the endpoint",
  description: "A description of the endpoint"
}, async (req,res) => {
  ...
})

import { EzApp, EzBackend } from '@ezbackend/common';
import { EzOpenAPI } from '@ezbackend/openapi';

export class Person {
  name: string
  age: number
  gender: 'male' | 'female'
}

const app = new EzBackend();

//Plugins
app.addApp(new EzOpenAPI());

const genderSwapper = new EzApp()

genderSwapper.post('/', {
  querystring: Person,
  headers: Person,
  body: Person,
  reply200: Person
}, async (req,res) => {
  const newPerson = {...req.body}
  if (newPerson.gender === 'male') {
    newPerson.gender = 'female'
  } else {
    newPerson.gender = 'male'
  }
  return newPerson
})

app.addApp(genderSwapper,{prefix: 'gender-swap'})

app.start();

By specifying the input using classes, you get:

Automatic Documentation
Input/Output Validation
Typescript type safety within the handler

info

If you see the warning no auto documentation nor input validation provided, it means that you have to specify Typescript classes or JSON Schema for automatic documentation to work.

Schema Definition

To use a schema within EzBackend it needs to be exported from the top level file.

For this reason, all schemas used within a single EzBackend project need to have unique names as well.

export class Person {
  name: string;
  age: number;
  gender: 'male' | 'female';
}

Additional JsDoc annotations can also be used to extend the default types

// This adds a format:email field in the generated schema, which is reflected in the auto-generated-docs

export class Person {
  /**@format email */
  email: string;
}

After creating a class you can use it in your routes for validation and automatic documentation. All the possible endpoints types are listed below. Currently Typescript Class validation only supports 200 and 400 type responses, if you need to define it for other error codes you can use JSON Schema

export class QueryString {data:any}
export class Headers {data:any}
export class Body {data:any}
export class Params {data:any}
export class Reply200 {data:any}
export class Reply400 {data:any}

app.post('/', {
  body: Body,
  params: Params,
  querystring: QueryString,
  headers: Headers,
  reply200: Reply200,
  reply400: Reply400,
  summary: 'summary',
  description: 'description'
}, async (req,res) => {
  return {}
})

EzBackend uses ts-json-schema-generator to convert Typescript classes to the appropriate types.

Summary

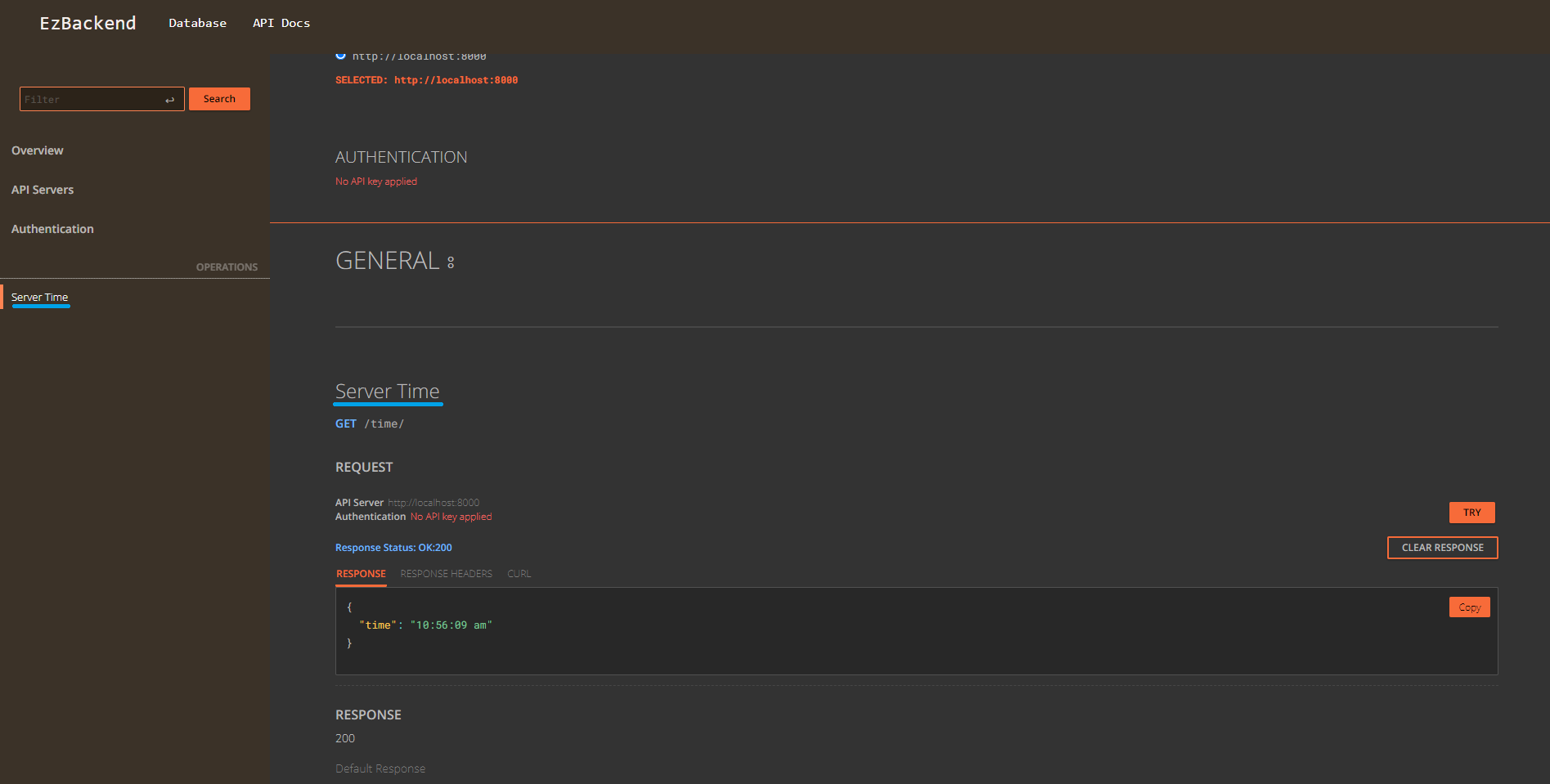

You can provide a summary of what your route, which will be reflected in the Db-UI

summary

Async
Sync
Full

app.get("/",{
  summary: "Server Time"
}, async (req,res) => {
  const time = new Date().toLocaleTimeString()
  return {time: time}
});

app.get("/",{
  summary: "Server Time"
}, function (req,res) {
  const time = new Date().toLocaleTimeString()
  res.send({time: time})
});

undefined

app.route({
  method: GET, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    const time = new Date().toLocaleTimeString()
    return {time: time}
  },
  summary: "Server Time"
})

Description

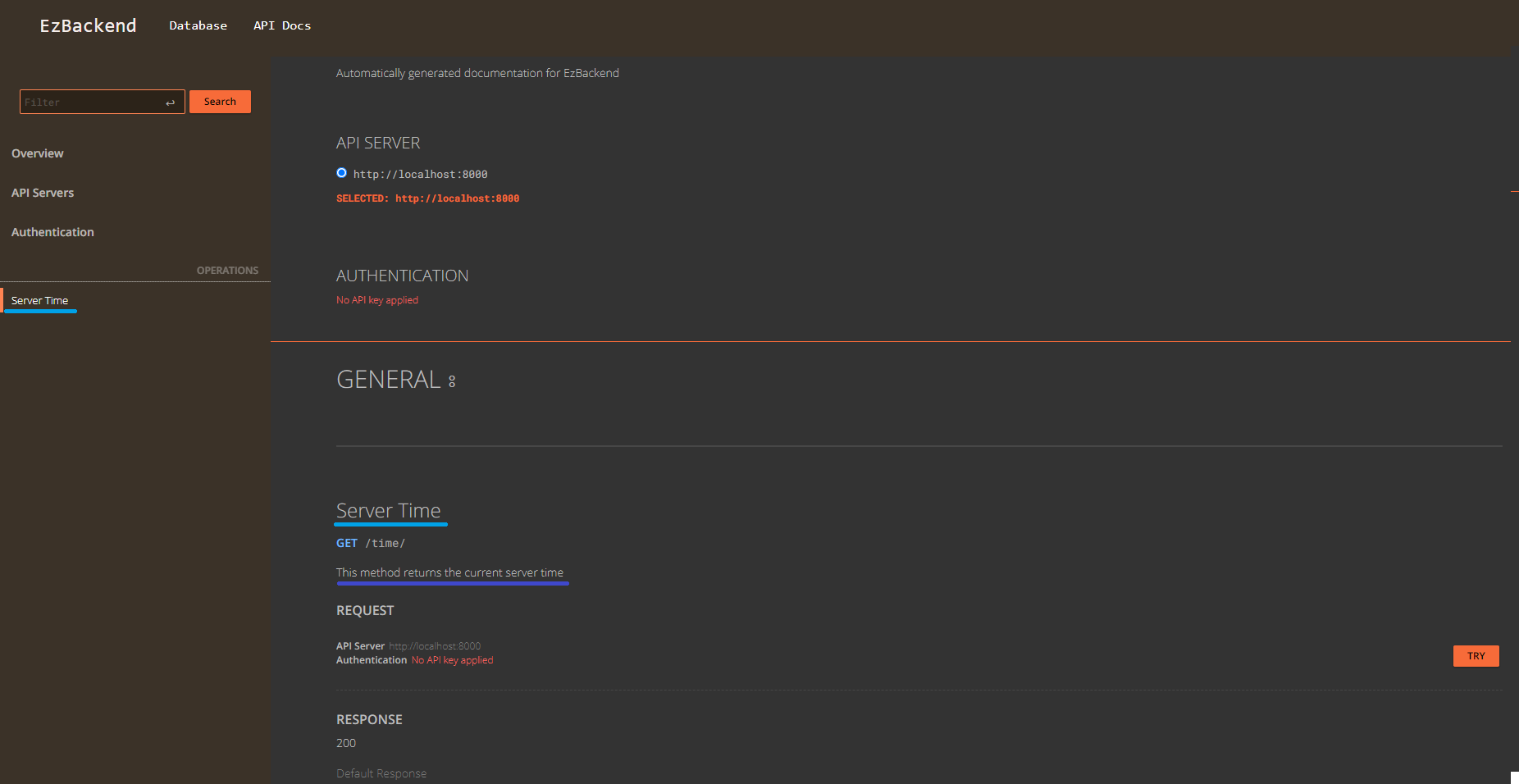

You can provide a detailed description of what your route does, which will be reflected in the Db-UI

description

Async
Sync
Full

app.get("/",{
  summary: "Server Time",
    description: "This method returns the current server time"
}, async (req,res) => {
  const time = new Date().toLocaleTimeString()
  return {time: time}
});

app.get("/",{
  summary: "Server Time",
    description: "This method returns the current server time"
}, function (req,res) {
  const time = new Date().toLocaleTimeString()
  res.send({time: time})
});

undefined

app.route({
  method: GET, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    const time = new Date().toLocaleTimeString()
    return {time: time}
  },
  summary: "Server Time",
    description: "This method returns the current server time"
})

Schema Caching

When NODE_ENV is not set to production, json-schemas of the exported classes are stored in a auto-generated folder, schemas

The folder schemas should be treated as code and committed in version control.

Running in Production

When NODE_ENV is set to production, instead of generating the json-schema on-the-fly (which is the default for non-production mode), validation schemas are obtained from the schemas folder to reduce startup time.

JSON Schema

If you find any limitations with the automatic schema generation, or you are not using typescript, you can fall back to JSON Schema for route validation.

The schemas provided must be in JSON Schema format.

body - Validates the request body for POST,PUT and PATCH methods

query - Validates the request query string (e.g api.your-app.com?name=bob&age=25)

params - Validates the params (e.g api.your-app.com/user/:userId)

response - Filters the output, according to status code (e.g if the status is 200 OK, it will follow the 200 schema)

Defining these values will also populate the documentation automatically

Async
Sync
Full

app.post("/",{
  schema:{
    body: <YOUR JSON SCHEMA>,
    query: <YOUR JSON SCHEMA>,
    params: <YOUR JSON SCHEMA>,
    response:
      200: <YOUR JSON SCHEMA>
  }
}, async (req,res) => {
  return {data: req.body}
});

app.post("/",{
  schema:{
    body: <YOUR JSON SCHEMA>,
    query: <YOUR JSON SCHEMA>,
    params: <YOUR JSON SCHEMA>,
    response:
      200: <YOUR JSON SCHEMA>
  }
}, function (req,res) {
  res.send({data: req.body})
});

undefined

app.route({
  method: POST, //Can be array of methods
  url: '/',
  handler: async => (req, res) { //sync version works too
    return {data: req.body}
  },
  schema:{
    body: <YOUR JSON SCHEMA>,
    query: <YOUR JSON SCHEMA>,
    params: <YOUR JSON SCHEMA>,
    response:
      200: <YOUR JSON SCHEMA>
  }
})

Configuration

You can configure the automatic documentation functionality by setting certain environment variables

These values can be set in .env and will automatically be loaded

Variable	Description	Sample
ENTRY_POINT_PATH	The path of the file from which all your types are exported from	ENTRY_POINT_PATH=src/index.ts
TS_CONFIG_PATH	The path of your tsconfig.json	TS_CONFIG_PATH=tsconfig.json
SCHEMA_DIR	The folder name where schemas are stored	SCHEMA_DIR=schemas

Route options

Route options can be used to add additional functionality to your routes

prefixTrailingSlash

prefixTrailingSlash: string used to determine how to handle passing / as a route with a prefix.

both (default): Will register both /prefix and /prefix/.

slash: Will register only /prefix/.

no-slash: Will register only /prefix.

Async
Sync
Full

app.post("/prefix",{
  prefixTrailingSlash:'both' //'both'|'slash'|'no-slash'
}, async (req,res) => {
  return {data: req.body}
});

app.post("/prefix",{
  prefixTrailingSlash:'both' //'both'|'slash'|'no-slash'
}, function (req,res) {
  res.send({data: req.body})
});

undefined

app.route({
  method: POST, //Can be array of methods
  url: '/prefix',
  handler: async => (req, res) { //sync version works too
    return {data: req.body}
  },
  prefixTrailingSlash:'both' //'both'|'slash'|'no-slash'
})

Route Prefixing

When adding apps to apps, you can specify the prefix in the options in order to prefix all the routes in the app and all children apps

Sample
Full Sample

app.addApp(childApp, { prefix: "hello-world" });

import { EzBackend, EzApp } from "@ezbackend/common";

const app = new EzBackend();
const childApp = new EzApp();

childApp.get("/", async (req, res) => {
  return { hello: "world" };
});

app.addApp(childApp, { prefix: "hello-world" }); //PREFIX HERE
app.start();

Additional Functionality

EzApps are expose the functionality of fastify objects, so anything that would work in fastify would also work here.

Overview​

info

Sample structure​

Viewing Available Routes​

Creating routes​

Get​

Post​

Put​

Patch​

Delete​

Route Validation / Documenting Routes​

info

Schema Definition​

Summary​

Description​

Schema Caching​

Running in Production​

JSON Schema​

Configuration​

Route options​

prefixTrailingSlash​

Route Prefixing​

Additional Functionality​

Overview

Sample structure

Viewing Available Routes

Creating routes

Get

Post

Put

Patch

Delete

Route Validation / Documenting Routes

Schema Definition

Summary

Description

Schema Caching

Running in Production

JSON Schema

Configuration

Route options

prefixTrailingSlash

Route Prefixing

Additional Functionality
